SIS Pillar
Electrical Disconnection Systems

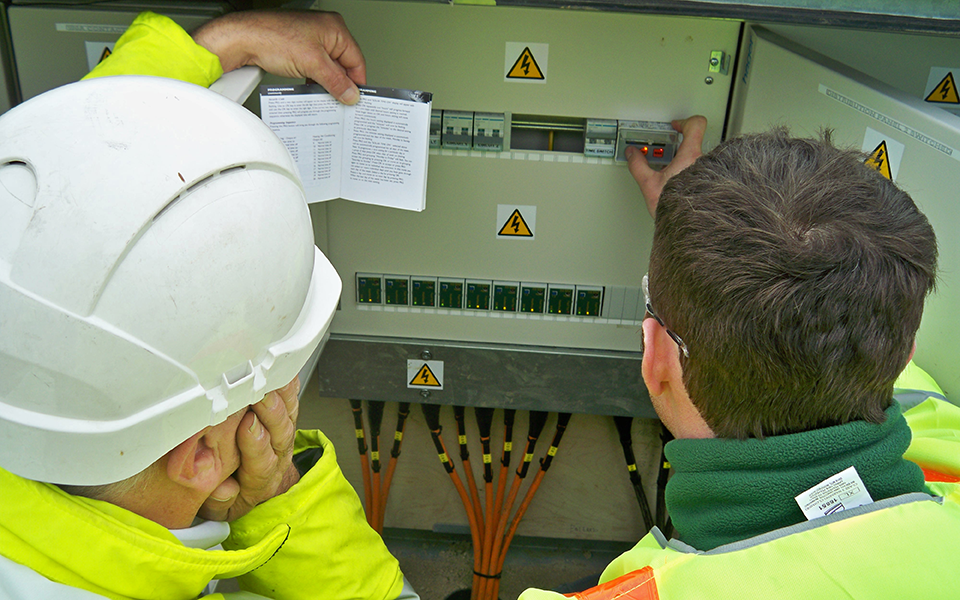

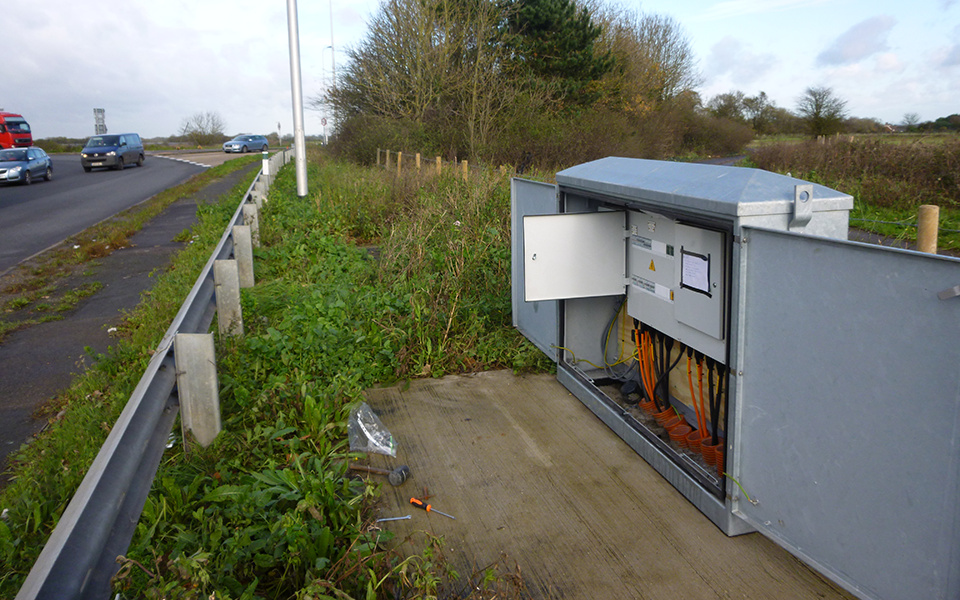

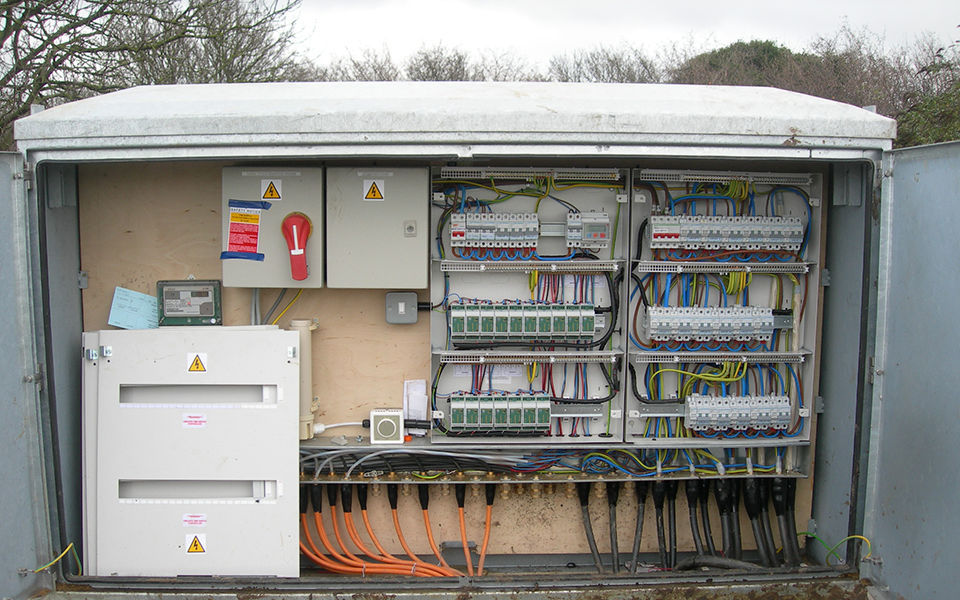

SIS Pillar is an electrical isolation system specifically for lighting columns and illuminated sign applications. Each pole is fitted with a small sensor that, in the event of an impact, communicates with the monitor board triggering complete LV and ELV isolation within 0.2 seconds. Monitor boards are din rail mounted within a standard street lighting cabinet, providing electrical isolation to individual columns or circuits.
The system is fully compliant with EN12767:2007 (Electrical Isolation of Passively Safe Structures) and can be used with any passively safe structure.
Features & Benefits
- Fully compliant with EN12767:2007
- Successfully tested at MIRA
- Disconnection time officially proven with timing device
- Suitable for use with NE, LE and HE Passively safe columns
- Appropriate for use in non-passive columns
- Wide range of above and below ground systems available to suit all site conditions
- Designed and built to your specification
- Simple installation onto din rail or 3U rack
- Design layout drawings and specifications provided
- Provides isolation of individual structures or circuits
- Installation simple to test and prove prior to commissioning
- Guaranteed electrical isolation of all volts within 0.2 seconds of impact
- System can operate with impact sensor located 3km from SIS monitor board
- Guaranteed isolation of all VOLTS even if the the structure has not detached from its base
- Isolates all volts even if Impact Sensor is destroyed
- Automatic restart and recheck after power failure
- Provides fault outputs for impact, voltage drop and other potential maintenance issues
- Impact sensors easily replaced after impact
- Simple means of re-energising circuit while the impacted structure remains isolated
- Fault outputs can be connected to CMS or RMS systems
- Enables simple isolation of individual column for maintenance works
- Simple to test periodically
